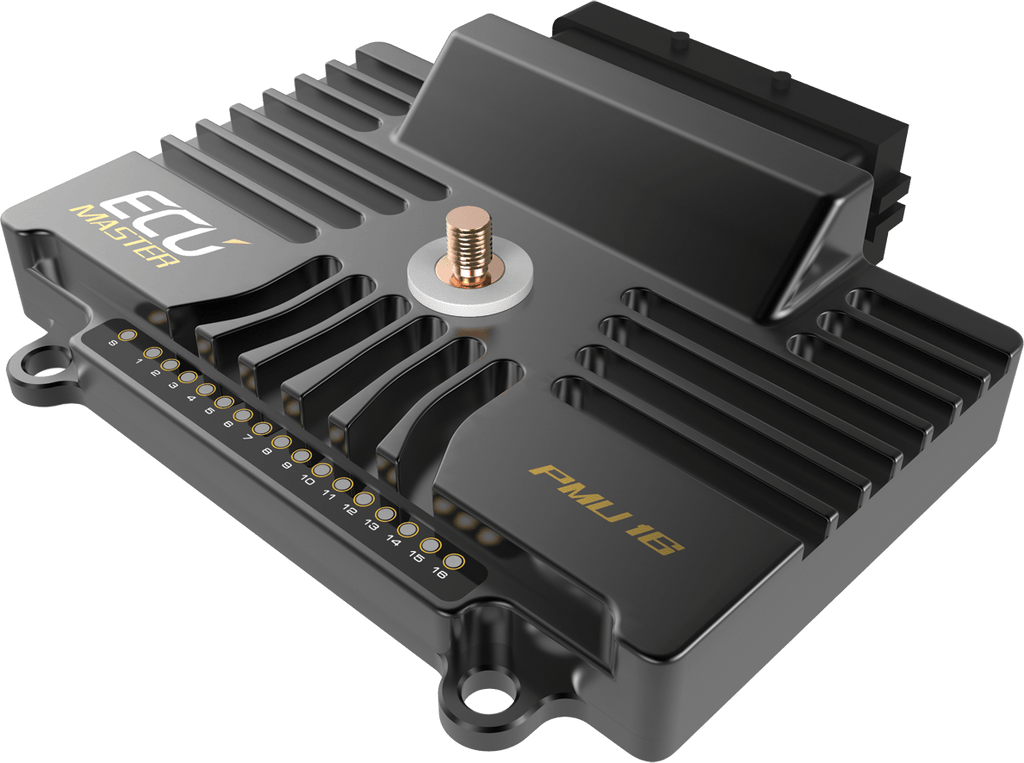

ECU Master PMU

State of the art product from ECUMASTER top of the modern power distribution technology.
Intelligent power distribution simplify your wiring and provide functionality not possible for traditional wiring
One of the main advantages of the PMU is continuous current sensing and self-resetting functionality if current exceeds the defined level. All output state, voltage and current information can be logged and transmitted via CAN bus to dash displays to inform drivers of potential problems.

An additional advantage of the PMU system is the ability to define logic for controlling outputs. This is done with data from analogue input channels or CAN bus data, and math operations can be defined for each channel. The PMU is also equipped with LED indicators to show the status of each output.

With use of CAN bus keypads or steering wheel switches, all wiring is vastly simplified and lightened.Two unique features are the inbuilt accelerometer and gyro for logging and “inertia switch” in case of accident.
System is designed for easy integration with our range of accessories.
Key pads 6 Key , 8 KeyCan switch board


Please note for communication to PMU, CAN to USB interface is required

SPECIFICATION

GENERAL

Temperature range AECQ100 GRADE1 (-40 to +125˚C)
CPU 32 bits automotive, 90MIPS
Reverse polarity protection Yes, internal
Operating voltage 6-22V, immunity to transients according to ISO 7637
Enclosure IP 65, bespoke CNC machined aluminium
Size (mm) and weight(g) 131x112x32.5, 345g
Connectors 1 x 39 Automotive connector,



1 x M6 stud for battery connection

PC communication CAN (ECUMASTER USBtoCAN, PEAK CAN, KVASER)

OUTPUTS

High current outputs 10 x 25A(cont.), 6 x 15A(cont.) with overcurrent and overheating protection. Outputs may be paired to increase continuous current capability. Current and voltage is measured for each output
Total current output 150A continuous
Output current control step 100mA
Wipers output Dedicated output with wiper braking feature
+5V Monitored 5V, 500mA output for powering external sensors.

INPUTS

Analog inputs 16 inputs, 10 bit resolution, 0-5V (protected), with software selectable 10K Ohm pullup and pulldowns
CAN Keypads 2 x Ecumaster keypads (4, 6, 8, 12 keys)

OTHER

Output state indication 16 bicolour LEDs
Accelerometer/Gyroscope 3D accelerometer with 3D gyroscope for logging and crash detection
Real time clock Yes, super capacitor for backup power (up to 3 days)



CAN BUS

CAN interface 2 x CAN2.0 A/B
CAN standard CAN2.0 A/B – 125, 250, 500, 1000 kbps
Input/output stream User defined with bit masking,



up to 100 input messages

LOGGING*

Logging memory 256 Mbytes
Logging speed Variable, defined per channel, up to 500Hz

FUNCTIONS

Logical operators AND, OR, NOT, XOR,  >, <, =, >=, <=, !=, isTrue, isFalse, Toggle, Flash, Pulse
Number of functions 100
Number of operations 250
Update frequency 500Hz
Special functions Wipers, blinkers
